18 METER DIESEL 10.7 METER DIESEL 12 METER DIESEL 18 METER CNG 12 METER CNG +12 METER ELECTRIC

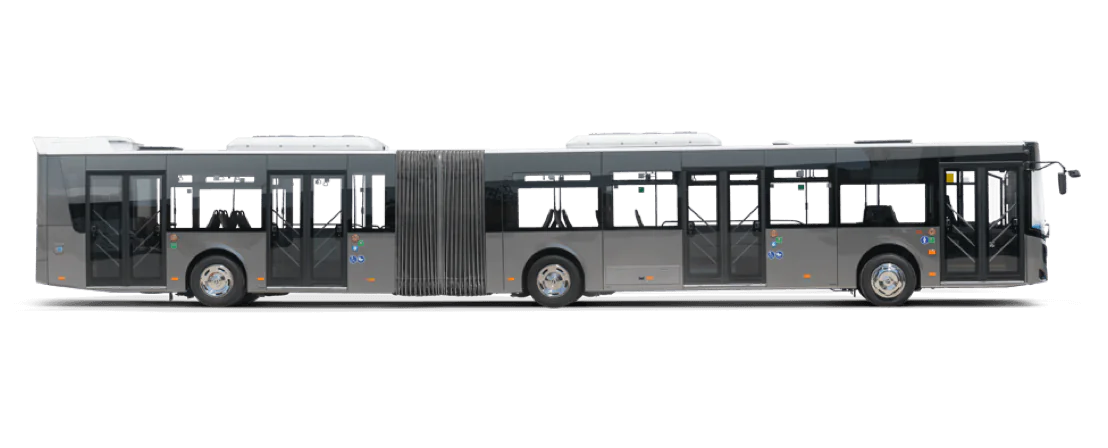

Engine

BRAND

Cummins / L9 E6

Type

Turbo Intercooler, Diesel

Number of Cylinders

6

Sweak Volume

8,9 L

Maximum Power

269 ​​kW @ 2100 rpm

Maximum Torque

1584 Nm @ 1300 rpm

Fuel Equipment

Fuel Tank Volume

300 L

Ad-Blue Tank Volume

38 L

Gear Box

Brand

ZF, Automatic

Number of Gears

6 Forward, 1 Reverse

Rear Axle

Brand

ZF

Carrying Capacity

13000 kg

Front Axle

Brand

ZF

Carrying Capacity

8200 kg

Rear Axle

Differential Brand

ZF

Carrying Capacity

13000 kg

Suspension

Front Axle

Air Bellows (2), Telescopic Shock Absorber (2)

Middle Axle

Air Bellows (2), Telescopic Shock Absorber (2)

Rear Axle

Air Bellows (4), Telescopic Shock Absorber (4)

V.D.C. / Side Lying

Back / Right Side Sleeping

Chassis

Body Type

Monocoque Knitted Type (Fully Low Base)

Tires

SIZE / QTY

275 / 70R 22.5 - 10 Pieces

Rims

Dimensions

8,25 x 22,5

Electrical System

EQUIPMENT

24 V Negative

BATTERIES

2 x 12 V / 240 Ah

ALTERNATOR

24 V / 2 x 120 Ah

Steering System

TYPE

Hydraulic

Brakes

Brake System Type

Air Controlled Disc, EBS (ABS+ASR)

AUXILIARY BRAKE

Hydraulic Retarder (intarder) Activated via Hand Lever and/or Brake Pedal

Standard Equipment

Digital Clock
Manuel Foldable Disabled Ramp
Engine Room Automatic Fire Extinguishing System
Electrically Controlled Heated Side Mirrors
LED Interior Lighting
Adjustable Steering Entegrated with Cluster (DWP)
Isolated Driver Cabin

Optional Equipment

A/C with Roof Heating Function
Automatic Greasing System
Electrically Controlled Roof Hatch
LCD Monitor
Camera Surveillance and Recording System
Automatic Oil Filling
Driver A/C (Defroster with cooling function)
Preheater
USB Charger
Tyre Pressure Monitoring System (TPMS)
LED Destination Panels
Passenger Counting System
Announcement System
Rear View Camera and Display Screen
Tachograph
Electric Fan for Ventilation
Park Sensor
Coach Type Mirror
Front Fog Lamps
Optional Engine Power:
204 kW (280 HP) @ 2100 rpm

Dimensions (mm)

Wheelbase

4470

Overall Width

2550

Inner Height

2370

Rear Overhang

3280

Rear Track Width

1832

Inner Width

2410

Overall Length

10590

Maximum Height

3100

Front Overhang

2840

Front Track Width

2096

Entrance Height

340

Capacity

Passenger Capacity

26 Seating + 72 Standing

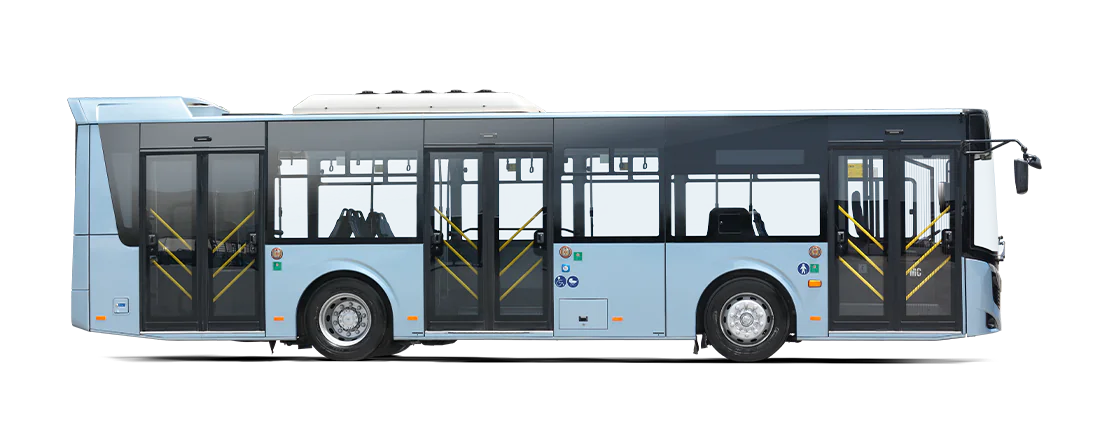

Engine

Brand / Model

Cummins B4.5 E6

Type

Turbocharged Intercooler, Diesel

Number of Cylinders

6

Cylinder Volume

6,7 L

Maximum Power

182 kW @ 2100 rpm

Maximum Torque

982 Nm @ 1400 rpm

Fuel Equipment

Fuel Tank Volume

210 L

Urea Tank Volume

38 L

Gear Box

Brand / Model

ZF, Automatic

Number of Gears

6 Forward, 1 Reverse

Front Axle

Brand

ZF

Carrying Capacity

8200KG

Rear Axle

Brand

ZF

Gear Ratio

6.20:1 / Single Speed

Carrying Capacity

13000 kg

Suspension

Front Axle

Air bellows (2), Telescopic Shock Absorber (2)

Middle Axle

Air bellows (4), Telescopic Shock Absorber (4)

Rear Axle

Air Bellows(4), Telescopic Shock Absorber(4)

V.D.C. / Side Lying

Rear/Right Side Tilt (ECAS)

Chassis

Profile Type

Monocoque Knitted Type (Fully Low Base)

Tires

SIZE / QTY

275/70R 22.5 - 6 Pieces

Jantlar

Dimensions

8.25 x 22.5

Electrical System

Hardware

24 V Negative Chassis

Battery

2 x 12 V / 240 Ah

Alternator

24 V / 2 x 120 Ah

Steering System

Type

Hydraulic Assisted, Single Circuit

Brakes

Brake System Type

Air Controlled Disc Brakes, Air Controlled Parking Brake, EBS (ABS+ASR)

Retarder Type

Intarder, Lever and/or Pedal Driven

Standard Equipment

Manual Disabled Passenger Ramp
Manual Roof Ventilation Cover
Fire Detection Warning and Extinguishing System
Electrically Controlled Heated Side Mirrors
LED Interior Lighting
Isolated Driver Cabin
Digital Clock
Adjustable Steering Wheel Integrated with Dashboard

Optional Equipment

Air Conditioning
Electronic Line Display
Security Cameras and Recording System
LCD Monitor
Passenger Counting System
Mobile Charger
Central Chassis Lubrication System
Electric Roof Ventilation Cover
Turbo Fan Ventilation System
Pre-Heater
Tire Pressure Warning System
Voice Announcement System
Parking Sensor
Ram Type Side Mirrors
Door Top Lights
Engine Oil Top-Up System
Independent Front Axle

Dimensions (mm)

Wheelbase

4470

Maximum Length

10590

Maximum Width

2550

Maximum Height

3100

Inside Height

2370

Front Length

2840

Rear Length

3280

Front Track Width

2096

Rear Track Width

1832

Entry Height

340

Inside Width

2410

Capacity

Carrying Limit

26 Seated + 68 Standing
(22 Fixed + 4 Folding)
22 Seated + 64 Standing + 1 EY

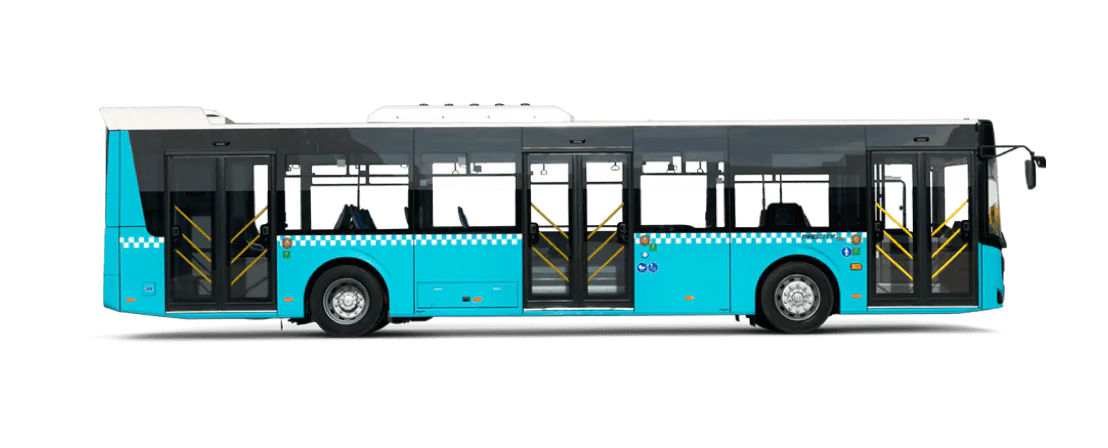

Engine

Brand / Model

Cummins / B6,7 E6

Type

Turbochargerd Intercooler, Diesel

Number of Cylinders

6

Cylinder Volume

6,7 L

Maximum Torque

832 Nm @ 1400 rpm

Fuel Equipment

Fuel Tank Volume

235 L (Rigid Front Axle) and 210 L (Independent Front Axle)

Ad-Blue Tank Volume

38 L

Gear Box

Brand

ZF, Automatic

Number of Gears

6 Forward, 1 Reverse

Front Axle

Differential Brand

ZF

Carrying Capacity

8200 Kg

Rear Axle

Brand

ZF

Carrying Capacity

13000 kg

Suspension

Front Axle

Air bellows (2), Telescopic Shock Absorber (2)

Air bellows (2), Telescopic Shock Absorber (2)

Air bellows (4), Telescopic Shock Absorber (4)

V.D.Ç

Rear / Right Side Lean

Chassis

Profile Type

Monokok Knitted Type (Fully Low Floor)

Tires

SIZE / QTY

275 / 70R 22.5 - 6 Pieces

Rims

Dimensions

8,25 x 22,5

Electrical System

Hardware

24 V Negative Chassis

Battery

2 x 12 V / 240 Ah

Alternator

28V / 2 x 120 Ah

Steering System

Type

Hydraulic Assisted, Single Circuit

Brakes

Brake System Type

Air Controlled Disc Brakes, Air Controlled Parking Brake, EBS (ABS + ASR)

Retarder Type

Intarder - Lever and/or Pedal Driven

Standard Equipment

Manual Disabled Passenger Ramp
Manual Roof Ventilation Cover
Fire Detection Warning and Extinguishing System
Electrically Controlled Heated Side Mirrors
LED Interior Lighting
Digital Clock
Adjustable Steering Wheel Integrated with Dashboard
Hydrostatic Fan Engine Cooling System

Optional Equipment

Air Conditioning
Electronic Line Display
Security Cameras and Recording System
LCD Monitor
Passenger Counting System
Mobile Charger
Central Chassis Lubrication System
Engine Oil Top-Up System
Electric Roof Ventilation Cover
Turbo Fan Ventilation System
Turbo Fan Ventilation System
Pre-Heater
Tire Pressure Warning System
Voice Announcement System
Parking Sensor
Ram Type Side Mirrors
Door Top Lighting
Independent Front Axle

Kopya Kopya

Dimensions (mm)

Wheelbase

5850

Maximum Length

11970

Maximum Width

2550

Maximum Height

2550

Inside Height

2550

Front Length

2550

Rear Length

3280

Front Track Width

2096

Rear Track Width

1832

Entry Height

340

Inside Width

2410

Capacity

21 Sitting + 51 Standing
24 Sitting + 43 Standing
(21 Fixed + 4 Folding)
21 Sitting + 43 Standing + 1 EY

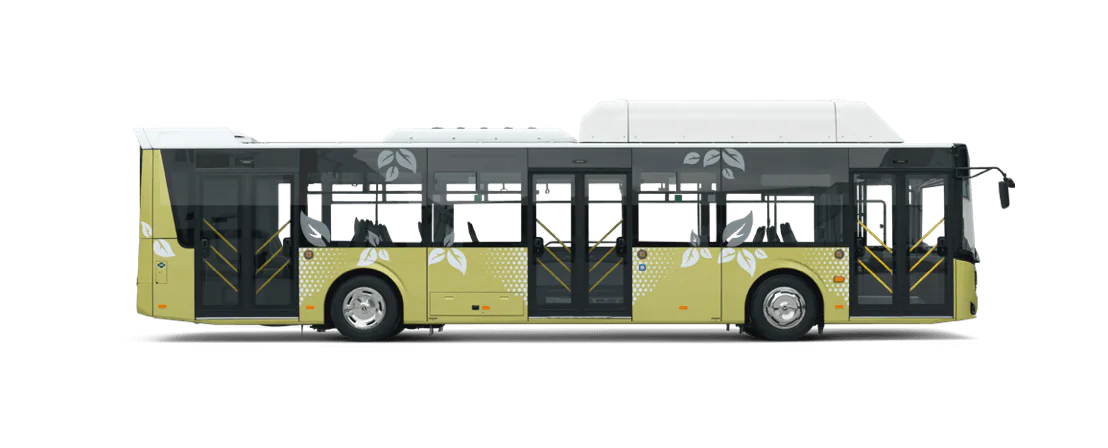

Engine

BRAND / MODEL

Cummins L9N E6

NUMBER OF CYLINDERS

6

MAXIMUM POWER

235 kW @ 2000 rpm

TYPE

Turbocha rged In t e rcoole r, CNG

ENGINE DISPL ACEMENT

8800 cm ⊃3;

MAXIMUM TORQUE

13 57 Nm @ 1300 - 1400 rpm

Fuel Equipment

CNG FILLING NOZZLE

Right Side, NGV 2

CNG TANK CAPACITY

1584 L

Transmission

BRAND

ZF (Independent)

NUMBER OF GEARS

6 Forward, 1 Reverse

Front Axle

Brand

ZF (Independent)

Load Capacity

8200 kg

Rear Axle

Brand

ZF (Portal)

Gear Ratio

6.20 :1

Load Capacity

13000 kg

Suspension

Front Axle

Air Bellows (2), Hydraulic Absorbers (2)

Mid and Rear

Air Bellows (4), Hydraulic Absorbers (4)

Kneeling

Side Kneeling (ECAS)

Vehicle Body

BODY AND CONTRUCTION

Monocoque Chassis and Body (Low-Floor)

Tires

SIZE / UNITS

275 / 70R 22,5 - 10

Rims

SIZE

8.25 x 22.5

Electrical System

EQUIPMENT

24 V Negative

BATTERIES

2 x 12 V / 240 Ah

ALTERNATOR

14 V / 2 x 150 Ah

Steering System

TYPE

Hydraulic

Brakes

Brake System Type

Air Controlled Disc, EBS (ABS+ASR)

AUXILIARY BRAKE

Hydraulic Retarder (intarder) Activated via Hand Lever and/or Brake Pedal

Standard Equipment

Air Conditioner
Manuel Foldable Disabled Ramp
Automatic Fire Detection System
Electrically Controlled Heated Side Mirrors
LED Interior Lighting
LED Destination Panels
Isolated Driver Cabin
Digital Clock
Adjustable Steering Entegrated with Cluster (DWP)
Hydrostatic Fan Engine Cooling System

Optional Equipment

A/C with Roof Heating Function
Automatic Greasing System
Electrically Controlled Roof Hatch
LCD Monitor
Camera Surveillance and Recording System
Automatic Oil Filling
Driver A/C (Defroster with cooling function)
Preheater
USB Charger
Tyre Pressure Monitoring System (TPMS)
Passenger Counting System
Announcement System
Rear View Camera and Display Screen
Tachograph
ESC (ESP)
Filling Nozzle on Both Side (NGV2)
Electric Fan for Ventilation
Optional Doors Configuration (2-2-2-0)
Double Glazed Side Glasses
Park Sensor
Coach Type Mirror
Front Fog Lamps
Optional Fuel Tank Capacity
Automatic CNG Tank Drain Valve

Kopya Kopya

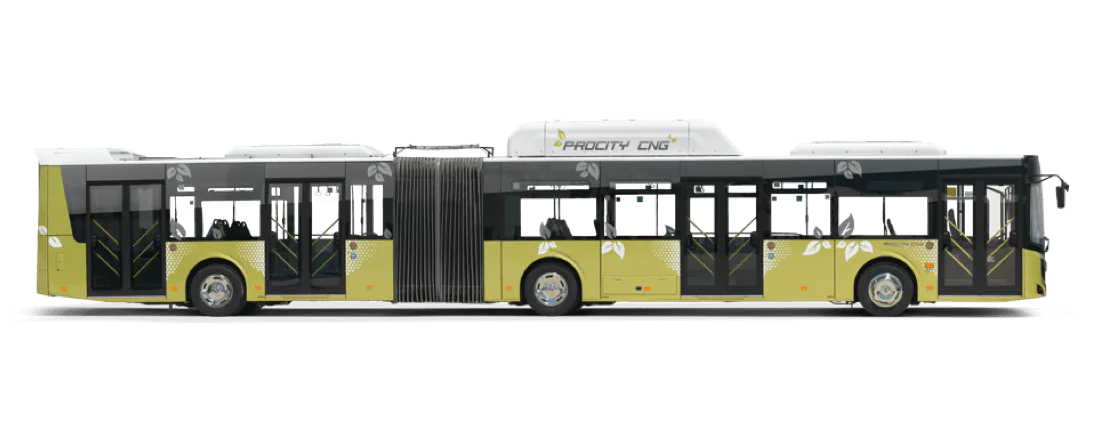

Dimensions (mm)

Wheelbase

5850

Wheelbase

6010

Overall Length

18124

Overall Width

2550

Maximum Height

3450

Inner Height

2370

Front Overhang

2840

Rear Overhang

2400

Front Track Width

2096

Rear Track Width

1832

Entrance Height

340

Inner Width

2410

Capacity

Passenger Capacity

38 Seating + 115 Standing

Engine

Brand

Cummins L9N E6

Type

Turbocharged Intercooler,CNG

NUMBER OF CYLINDERS

6

SWEEPING VOLUME

8,9 L

MAXIMUM POWER

235 kW @ 2000 rpm

MAXIMUM TORQUE

1356 Nm @ 1300 - 1400 rpm

Fuel Equipment

Filling Nozzle

NGV-2

Fuel Tank Volume

1400 L

Gear Box

Brand

AZF, Automatic

Number of Gears

6 Forward, 1 Reverse

Front Axle

Brand

ZF

Carrying Capacity

8200 kg

Rear Axle

Differential Brand

ZF

Differential Speed ​​Number

6.20:1 / Single Speed

Carrying Capacity

13000 Kg

Suspension

Front Axle

Air bellows (2), Telescopic Shock Absorber (2)

Rear Axle

Air Bellows (4), Telescopic Shock Absorber (4)

V.D.C / Side Lying

Back / Right Side Sleeping

Chassis

Profile Type

Monocoque Knitted Type (Fully Low Base)

Tires

SIZE / QTY

275 / 70R 22.5 - 6 Pieces

Rims

Dimensions

8.25 x 22.5

Electrical System

Hardware

24V Negative Ground

Battery

2 x 12 V / 240 Ah

Alternator

24 V / 2 x 150 Ah

Direksiyon Sistemi

TYPE

Hydraulic Assisted, Single Circuit

Brakes

Brake System Type

Air Controlled Disc Type Brakes, Air Controlled Parking Brake, EBS (ABS / ASR)

Slowing Type

Intarder - Lever and/or Pedal Driven

Standard Equipment

Manual Disabled Passenger Ramp
Manual Roof Ventilation Cover
Fire Detection Warning and Extinguishing System
Electrically Controlled Heated Side Mirrors
LED Interior Lighting
Isolated Driver Cabin
Digital Clock
Adjustable Steering Wheel Integrated with Dashboard
Hydrostatic Fan Engine Cooling System

Optional Equipment

Air Conditioning
Electronic Line Display
Security Cameras and Recording System
LCD Monitor
Passenger Counting System
Mobile Charger
Central Chassis Lubrication System
Engine Oil Top-Up System
Electric Roof Ventilation Cover
Turbo Fan Ventilation System
Pre-Heater
Tire Pressure Warning System
Voice Announcement System
Parking Sensor
Ram Type Side Mirrors
Door Top Lighting
Independent Front Axle
Double Side CNG Filling Nozzle
Changeable Fuel Tank Capacity

Dimensions (mm)

Wheelbase

5850

Maximum Length

11970

Maximum Width

2550

Maximum Height

3450

Inside Height

2370

Front Length

2840

Rear Length

3280

Front Track Width

2096

Rear Track Width

1832

Entry Height

340

Inside Width

2410

Capacity

Carrying Limit

30 Sitting + 60 Standing
30 Sitting + 56 Standing + 1 EY

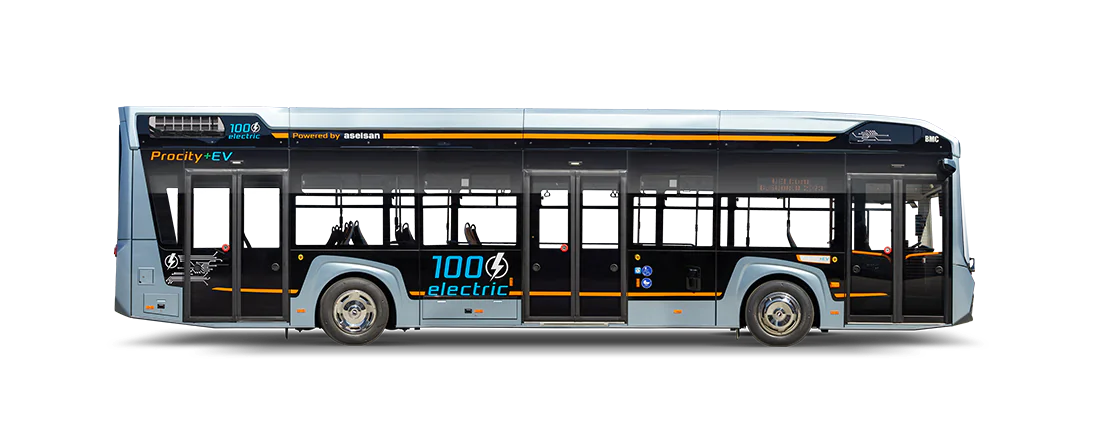

Engine

Brand / Model

HSVM - 287 ASELSAN

type

Permanent Magnet Asynchronous Motor

Maximum Power

250 kW

Maximum Torque

2700 Nm

Battery

Brand / Model

LTO, Aselsan

Kapasite

111.6 kWh (4 x 27.9 kWh), 607 V (Standard)

Front Axle

Brand

ZF, Independent

Carrying Capacity

7500 kg

Arka Dingil

Differential Brand

ZF (Portal)

Carrying Capacity

12500 kg

Suspension

Front Axle

Air Bellows (2), Telescopic Shock Absorber (2)

Rear Axle

Air Bellows (4), Telescopic Shock Absorber (4)

Side Lying

ECAS

Chassis

Profile Type

Monocoque Knitted Type (Fully Low Base)

Tires

SIZE / QTY

275 / 70R 22.5 - 6 Pieces

Rims

Dimensions

8.25 x 22.5

Electrical System

Hardware

24V Negative Ground

Battery

2 x 12 V / 240 Ah

DC / DC Converter

7,5 kW

Steering System

Tpye

Hydraulic

Brakes

Brake System Type

Air Ducted Disc, EBS / ASR, ESC

Slowing Type

Regenerative Braking, Activation by Brake Pedal or Adjustable Lever

Standard Equipment

Preheater
Air Conditioning
Manual Disabled Passenger Ramp
Automatic Fire Detection System
Electrically Heated Side Mirrors
LED Interior Lights
LED Line Indicator
Isolated Driver Cabin
Digital Clock
Hydrostatic Fan Engine Cooling System
Under-Engine Protection Cover
VDV Compatible Driver Work Area
Charging with Pantograph
Front Fog Lamps
Convector Heater
Defroster
Adjustable Steering Wheel (DWP) Integrated with Dashboard

Optional Equipment

Security Cameras and Recording System
LCD Monitor
Passenger Counting System
Central Lubrication System
Tire Pressure Monitoring System (TPMS)
USB Charger
Announcement System
Coach Type Mirrors
Parking Sensor
Electric Doors
Electric Disabled Passenger Ramp
Camera Mirror System

Dimensions (mm)

Wheelbase

5850

Maximum Length

12090

Maximum Width

2550

Maximum Height

3320

Inside Height

2370

Front Length

2840

Rear Length

3400

Front Track Width

2096

Rear Track Width

1832

Entry Height

340

Inside Width

2410

Capacity

Carrying Limit

31 Sitting + 66 Standing
