BMC 417 - Technical Specifications

Türkçe

Cabin

Type

Low Roof - Day Cab

Cab Suspension

Mechanical

Axle Configuration

4X2

Engine

Brand / Model

Cummins B4.0EVI E170

Type

Turbo Intercooler Dizel

Number Of Cylinders

Displacement

3.956 L

Max. Power

168 PS (120 kW) @ 2400 d/d

Torque

600 Nm @ 1100-1800 d/d

Tanks

Fuel Tank Capacity (3365 WB)

130 L

Fuel Tank Capacity (3845WB/4475 WB)

200 L

ADBLUE Tank Capacity

18 L

Gear Box

Brand / Model

Eaton ESO-6106 (Manuel)

Number of Gears

6 Forward, 1 Reverse

Gear Ratio

6,195:1 ; 0,775:1 (Reverse: 5,69:1)

Clutch

362 mm [Single Disc]

Front Axle

Load Capacity

3100 Kg

Rear Axle

Number of Differential Speeds

Sİngle Speed

Gear Ratio

3.889:1

Load Capacity

6200 kg

Suspension

Front Axle

Leaf Spring, Telescopic Shock Absorbers

Rear Axle

Leaf Spring, Telescopic Shock Absorbers

Anti-Roll Bar

Front and Rear Axle

Tyres

Size/Number

215 / 75 R 17.5, 6+1

Rims

Size

6.0 J x 17.5

Performance

Top Speed(Limited)(km/h)

Turning Badius (m)

3365 WB ; 7 - 3845 WB ; 7.5 - 4475 WB ; 9

Electrical System

Batteries

2 x 12 V / 92 Ah

Alternator

28 V, 90 A

Starter

24 V, 3,6 kW

Steering System

Type

Hydraulic

Brake System

Brake System Type

Air brake, Disc brake, ABS, ESC, HSA, ASR, AEBS, LDWS

Chasis

Chasis Profile

“C” Section

Standard Accessoried

General Safety Regulation (GSR II)
Digital Air Conditioner (Multimedia Control)
Bluetooth, Radio/MP3 Player
MP5 Multimedia
Advanced Emergency Braking System (AEBS)
Lane Departure Warning System (LDWS)
Hill Start Assist (HSA)
Electronic Stability Control (ESC)
Cruise Control
Digital and Analog Cluster
Central Locking System (Remote Control)
Tire Pressue Monitoring System (TPMS)
Power Steering
Steering Wheel Control Buttons
Automatic Headlights
Daytime Running Lamps (LED)
Side Marker Lights
Fog Lights
Adjustable Headlights
Rear View Camera
Rear Parking Sensor
Heated Exterior Mirrors
Electrically Controlled Windows
Fabric Seats
1 (Driver) + 2 (Passenger) Seat Configuration
Adjustable Driver's Seat
Hand-Lever Controlled Engine Brake
Safety Belt (3 Pcs)
Side Door Document's Area
Car Lighter, Ashtray
USB Charger
Sun Visor
Glove Box
Upper Shelves Inside the Cabin
Cup Holder
Tow Hook (Rear & Front)
Lockable Fuel Tank Cap
Lockable AdBlue Tank Cap
PTO Preparation
Spare Tyre

Dimensions (mm)

A: Wheelbase

3365 3845 4475

B: Overall Length

6155 7055 8007

C: Overall Width (Excluding Mirrors)

1995 1995 1995

D: Overall Height

2285 2285 2285

E: Cabin Length

1682 1682 1682

F: Useful Chassis Length

4473 5373 6325

G: Rear Extension

1590 2070 2295

H: Front Track Width

1710 1710 1710

J: Rear Track Width

1800 1800 1800

K: Chassis Height

850 865 875

N: Chassis Width

850 850 850

O: Front Extension

1110 1110 1110

Weights (KG)

Max. W. Loaded Front Axle 3000 3100
Max. W. Loaded Rear Axle 6000 6200
Gross Vehicle Weight 9000 9300

Curb Weight (KG)

CURB WEIGHT 3025 3130 3215
PAYLOAD 5975 5870 5785

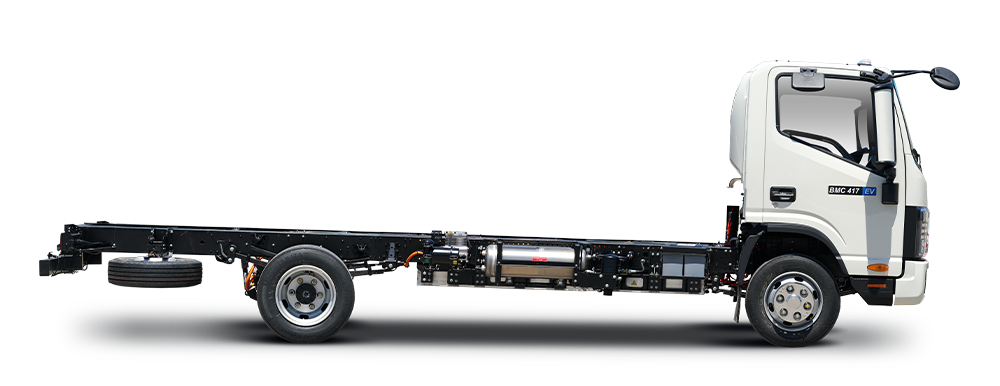

Cabin

Type

Low Roof - Day Cab

Cab Suspension

Mechanical

Axle Configuration

4X2

Engine

Brand / Model

Fast / TZ220XSE50-01

Type

Permanent Magnet Synchronous

Max. Power

90 kW (Continuous Power) / 180 kW (Max. Power)

Torque

270 Nm (Continuous Torque) / 550 Nm (Max. Torque)

Performance

Top Speed(Limited)(km/h)

Turning Badius

3365 WB ; 6700mm - 3845 WB ; 7300mm

Battery

Battery

100,46 kWh / CATL - LFP Battery

Range

Drive at Constant Speed 40km/h

300km

C-WTVC Standard

176km

Axels

Front Axle Load Capacity

3100 Kg

Rear Axle Number of Differential Speeds

Single Speed

Gear Ratio

18.75:1

Load Capacity

6000kg

Rear Axle

Number of Differential Speeds

Sİngle Speed

Gear Ratio

3.889:1

Load Capacity

6400 kg

Suspension

Front Axle

Leaf Spring, Telescopic Shock Absorbers

Rear Axle

Leaf Spring, Telescopic Shock Absorbers

Chasis

Chasis Profile

“C” Section

Tyres

Size/Number

215 / 75 R 17.5, 6+1

Rims

Size

6.0 J x 17.5

Electrical System

Acucumulator

2 x 12 V / 60 Ah

Alternator

27.8 V, 215 A (DC/DC Converter)

Steering System

Type

Hydraulic

Brake System

Brake System Type

Air brake, Disc Brake, ABS, ESC, HSA, ASR, AEBS, LDWS, EPB

Standard Accessoried

General Safety Requirements (GSR II)
Digital Air Conditioner (Multimedia Control)
Bluetooth, Radio
MP5 Multimedia
Advanced Emergency Braking System (AEBS)
Lane Departure Warning System (LDWS)
Hill Start Assist (HSA)
Electronic Stability Control (ESC)
Electronic Parking Brake (EPB)
Cruise Control
Digital Cluster
Central Locking System (Remote Control)
Hydraulic Steering
Steering Wheel Control Buttons
Automatic Headlights
Daytime Running Lamps (LED)
Side Marker Lights (LED)
Fog Lights
Asjustable Headlights
Rear View Camera System (RVCS)
Rear Parking Sensor
Electrical Heated Exterior Mirrors
Electrically Controlled Windows
Fabric Seats
1 (Driver) + 2 (Passenger) Seat Configuration
Adjustable Driver's Seat
Safety Belt (3 Pcs)
Side Door Document's Area
Car Lighter, Ashtray
USB Charger
Sun Visor
Glove Box
Upper Shelves Inside the Cabin
Cup Holder
Tow Hook (Rear & Front)
Spare Tyre
CCS2 Charging Socket
360° Camera
ECO Mode
Cyber Security Management System
(CSMS - UN ECE R155)
Software Update Management System
(SUMS - UN ECE R156)

Dimensions (mm)

A: Wheelbase

3365 3845 4475

B: Overall Length

6065 7025 7880

C: Overall Width (Excluding Mirrors)

1995 1995 1995

D: Overall Height

2245 2245 2245

E: Cabin Length

1682 1682 1682

F: Useful Chassis Length

4383 5343 6198

G: Rear Overhang

1590 2070 2295

H: Front Track

1716 1716 1716

J: Rear Track

1800 1800 1800

K: Chassis Height

850 865 875

N: Chassis Width

850 850 850

O: Front Extension

1110 1110 1110

Weights (KG)

Legal Technical

Max. W. Loaded Front Axle 3000 3100
Max. W. Loaded Rear Axle 6000 6000
Gross Vehicle Weight 9000 9100

Curb Weight (KG)

Curb Weight 3040 3090 3140
Payload 5960 5910 5860

Charging Time

AC Charge (0%-100%)

12.18 H

AC Charge (20%-80%)

7.19 H

DC Charge (0%-100%)

1.24 H (With Min. 114 kW Charging Capacity)

DC Charge (20%-100%)

1 H (With Min. 114 kW Charging Capacity)

DC Charge (20%-80%)

0.6 H (With Min. 114 kW Charging Capacity)

Optional Accessories

E-PTO Preparation
