ALTUĞ 8X8 IFV ALTUĞ 8x8 APC ALTUĞ 8X8 105 MM TANK KILLER

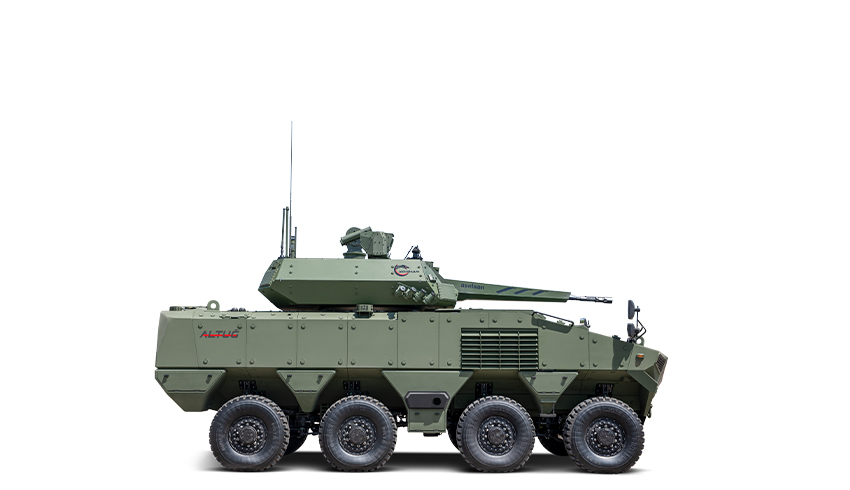

Engine

ENGINE

Caterpillar C13

MAX. POWER

711 BG

Transmission

Allison 4000 Series

GEAR

6 Forward, 1 Reverse

POWER TO WEIGHT RATIO

>20 (hp/ton)

Electrical System

VOLTAGE

24V

ALTERNATOR

600A

MIL STD 1275E

Axles

Continuous 8x8
Longitudinal and Transverse Lock System

Suspension

All Independent, Hydro Pneumatic
Optional Height Adjustment System

Tyres

14R20 and 16R20 Tyre Options
Central Tyre Inflation System
Integrated Run-Flat System

Steering System

4 Axle Hydraulic Steering

Turning Radius

<8m

Fire Power

PRIMARY - 35 MM DOUBLE-FED AUTOMATIC GUN

SECONDARY - 12,7 MM CO-AXIAL MACHINE GUN

200 Ammunitions Ready to Fire

7,62 MM CO-AXIAL MACHINE GUN

500 Ammunitions Ready to Fire

ADVANCED FIRE CONTROL SYSTEM

High Optical Stabilization Capability
Automatic Target Tracking
TV/Thermal Sights and Laser Range Finder
(Both for Commander and Gunner)
Hunter-Killer Capability
Unmanned Turret Controlled Within Vehicle

SMOKE GRENADE LAUNCHERS

8 Rounds

Auxiliary System

Embedded Crew Training Module
Smart Air Conditioning System
Auxiliary Power Unit
Driver Sight System
(Forward and Rear Camera, Corner
Camera, Ramp and Nose Camera)

Personnel Capacity

Up to 12
3 Crew (Commander, Gunner, Driver)
9 Personnel

Environmental Conditions

MIL STD 810G

OPERATING TEMPERATURE

+49 °C / -32 °C

Survivability

High Level and Augmentable Modular
Ballistic, Mine and IED Protection
CBRN Protection System (Both Over
Pressure and Face Masks)
Fire Extinguishing and
Explosion Suppression System
Battlefield Target Identification Device
Laser Detection and Warning System
Active Protection System
Gunshot Detection System
360° Situational Awareness System
Mobile Camouflage Net

Command & Control

Wide Band Software Defined Networking Radio
New Generation Intercom System
C4I System

Performance

MAX. SPEED

>110 km/h

FORDING DEPTH

120 cm

VERTICAL STEP CLIMBING

70 cm

TRENCH CROSSING

230 cm

GROUND CLEARANCE

>40 cm

SIDE SLOPE

30%

GRADEBILITY

60%

RANGE

>700 km

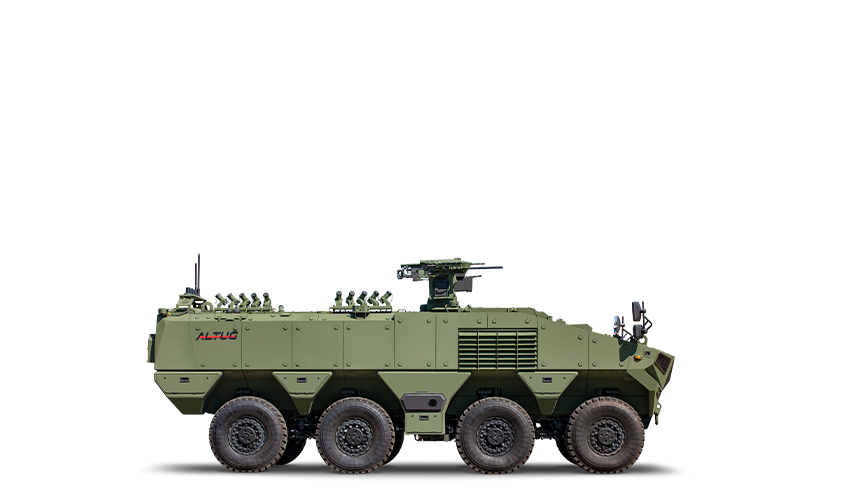

Engine

ENGINE

Caterpillar C13

MAX. POWER

711 BG

Transmission

Allison 4000 Series

GEAR

6 Forward, 1 Reverse

POWER TO WEIGHT RATIO

>23 (hp/ton)

Electric System

MIL STD 1275E

VOLTAGE

24 V

ALTERNATOR

600 A

Axles

Continuous 8x8
Longitudinal and Transverse Lock System

Suspension

All Independent, Hydro Pneumatic
Optional Height Adjustment System

Tyres

14R20 and 16R20 Tyre Options
Central Tyre Inflation System
Integrated Run-Flat System

Steering System

Hydraulic Boosted, 4 Axle Steering

Turning Radius

<8m

Fire Power

PRIMARY - 12.7mm MACHINE GUN

400 Ammunitions Ready to Fire

7.62mm MACHINE GUN

1000 Ammunitions Ready to Fire

40mm AUTOMATIC GRENADE LAUNCHER

80 Ammunitions Ready to Fire

SECONDARY - 7.62mm MACHINE GUN

500 Ammunitions Ready to Fire

ADVANCED FIRE CONTROL SYSTEM

High Stabilization Capability
Automatic Target Tracking
TV/Thermal Sights and Laser Range Finder

SMOKE GRENADE LAUNCHERS

4 Bundle with 5 Launchers on each
(Total 20 Launchers)

Auxiliary Systems

Smart Air Conditioning System
Auxiliary Power Unit
Driver Sight System (Forward and Rear Camera, Corner Cameras, Ramp and Nose Cameras)

Personnel Capacity

3 Crew (Commander, Gunner, Driver)
9 Personnel

Environmental Conditions

OPERATING TEMPERATURE

+49 °C / -32 °C

MIL STD 810G

Survivability

High Level and Augmentable Modular
Ballistic, Mine and IED Protection
CBRN Protection System (Both Over Pressure and Face Masks)
Fire Extinguishing and Explosion Suppression System
Laser Detection and Warning System
360° Situational Awareness System

Command & Control

Wide Band Software Defined Networking Radio
New Generation Intercom System
C4I System

Optional

Active Protection System
Gunshot Detection System
Mobile Camouflage Net

Performance

MAX. SPEED

>110 km/h

FORDING DEPTH

120 cm

VERTICAL STEP CLIMBING

70 cm

TRENCH CROSSING

230 cm

GROUND CLEARANCE

>40 cm

SIDE SLOPE

30%

GRADEBILITY

60%

RANGE

>700 km

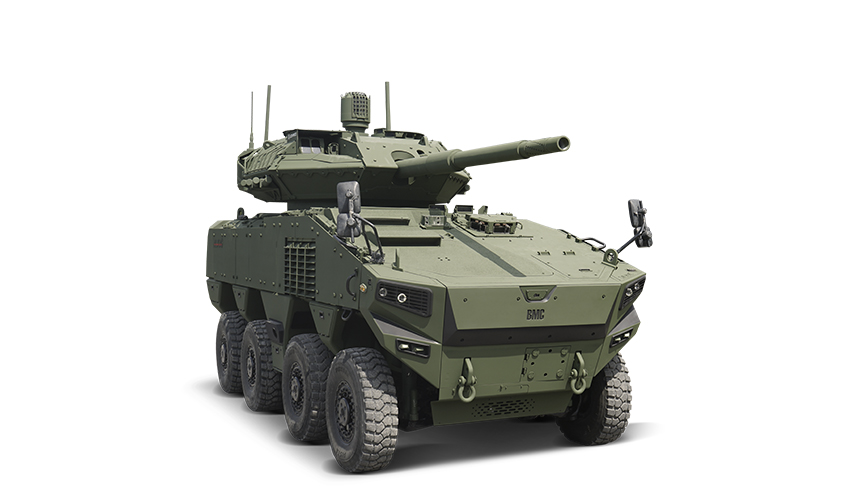

Performance

MAX. SPEED

110 km/h

FORDING DEPTH

120 cm

VERTICAL STEP CLIMBING

60 cm

TRENCH CROSSING

220 cm

GROUND CLEARANCE

>40 cm

SIDE SLOPE

30%

GRADEBILITY

60%

RANGE

>800 km

Fire Power

105 MM L52 LOW RECOIL RIFLED MAIN GUN

12 Ready Ammunition in The Turret
Automatic Loader With a Capacity of 6 Ammunition
28 Spare Ammunition in The Hull
Capable of Firing Ammunition Compatible
With STANAG 4385

SECONDARY 7,62 MM CO-AXIAL MACHINE GUN

500 Ammunitions Ready to Fire
Optional UKSS (7,62 MM/12,7 MM MG)

ADVANCED FIRE CONTROL SYSTEM

High Optical Stabilization Capability
Automatic Target Tracking
TV/Thermal Sights and Laser Range Finder
(Both for Commander and Gunner)
Hunter-Killer Capability

SMOKE GRENADE LAUNCHERS

8 Rounds

Environmental Conditions

OPERATING TEMPERATURE

MIL STD 810G
+49 °C / -32 °C

Engine

ENGINE

Caterpillar C13

MAX. POWER

711 BG

TRANSMISSION

Allison 4000 Series

GEAR

6 Forward, 1 Reverse

POWER TO WEIGHT RATIO

>20 (hp/ton)

Transmission

Allison 4000 Series

GEAR

6 Forward, 1 Reverse

Electrical System

VOLTAGE

MIL STD 1275E
24V

ALTERNATOR

600 A

Suspension

All Independent, Hydro Pneumatic
Optional Height Adjustment System

Auxiliary System

Embedded Crew Training Module
Air Conditioning System
Auxiliary Power Unit
Driver Sight System (Forward and Rear Camera, Corner Camera, Ramp and Nose Camera)

Tyres

14R20 and 16R20 Tyre Options
Central Tyre Inflation System
Integrated Run-Flat System

Steering System

4 Axle Hydraulic Steering

Personnel Capacity

Up to 12
3 Crew (Commander, Gunner, Driver)
9 Personnel

Survivability

High Level and Augmentable Modular Ballistic, Mine and IED Protection
CBRN Protection System (Both Over Pressure and Face Masks)
Fire Extinguishing and Explosion Suppression System
Laser Detection and Warning System
360° Situational Awareness System

Command & Control

Wide Band Software Defined Networking Radio
New Generation Intercom System
C4I System
