LOGISTIC SUPPORT VEHICLES

General Technical Specifications Gallery

Menu

General Technical Specifications Gallery

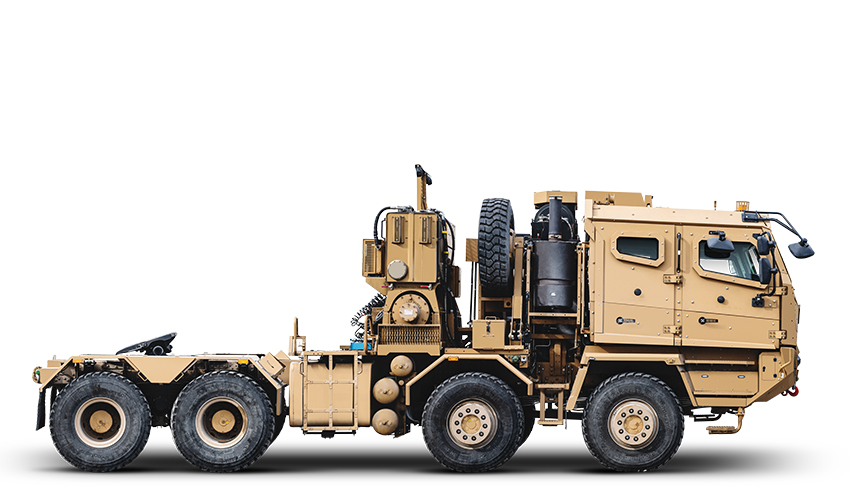

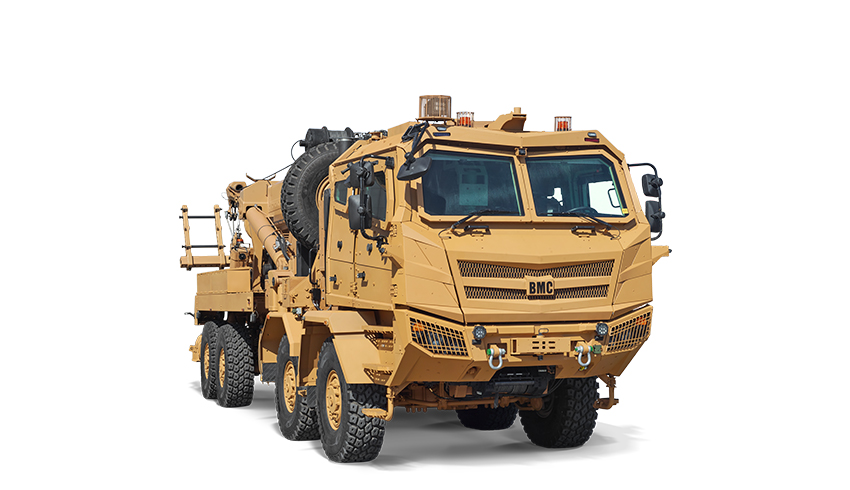

WATER TANKER 8X2 6X6 REFUELLER TANKER (FOR LAND) 6X6 REFUELLER TANKER (FOR AIRCRAFT) ZEYBEK 8X8 ARMORED TANK TRANSPORTER VEHICLE 8X8 TANK TRANSPORTER ZEYBEK 8X8 ARMORED RECOVERY VEHICLE

Environmental Conditions

MID COLD (CO)

-32°C

BASIC HOT (A2)

+49°C

Engine

BRAND

Cummins ISL8.9E3 375 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

4

DISPLACEMENT

8,9 lt

MAX. POWER

375 PS (275 kW) @ 2100 rpm

MAX. TORQUE

1550 Nm @ 1100 - 1400 rpm

Suspension

FRONT

Semi-Elliptical Leaf Springs, Telescopic Hydraulic Shock Absorbers

REAR

Semi-Elliptical Leaf Springs, Telescopic Hydraulic Shock Absorbers, Anti-Roll Bar

Tyres & Rims

SIZE / NUMBER

315/80 R 22,5 & 9,00 x 22,5

Brakes

TYPE

Drum Type
Fully Air Dry Type Service Brake System
Air Operated Spring Parking Brake
ABS / ASR
Jacobs Brake

Electrical

VOLTAGE

24 V

BATTERIES

2 x 12 V, 180 Ah

Standard Equipment

A/C System
Independent Cabin Heater

Performance

MAX. SPEED

114 km/h

GRADEABILITY

18%

RANGE

800 km

Dimensions

WHEELBASE

4800 mm

LENGHT

8570 mm

HEIGHT

3050 mm

WIDTH

2500 mm

NUMBER OF SEATS

3

Weights

CAPACITY

20000 lt

GROSS VEHICLE WEIGHT

32000 kg

Environmental Conditions

MID COLD (CO)

-32°C

BASIC HOT (A2)

+49°C

Engine

BRAND

Cummins

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

10,8 lt

MAX. POWER

410 Hp (306 kW) @ 1800 d/d

MAX. TORQUE

2000 Nm @ 1200 d/d

Brakes

TYPE

Disc Type
Double Circuit Full Air Service Brake
Air Operated Spring Loaded Handbrake
Jacobs Brake
ABS

Transmission

BRAND

Allison 4000

TYPE

Fully Automatiic, Torque Converter

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Two Speed

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Driveline

AXLES BRAND

AxleTech 4000 Series

TYPE

Rigid, 6x6

Suspension

FRONT

Parabolic Leaf Springs
Hydraulic Telescopic Socket Absorber
Anti Roll Bar

REAR

Parabolic Leaf Springs
Hydraulic Telescopic Socket Absorber
Anti Roll Bar

Electrical

VOLTAGE

24 V

BATTERIES

200 Ah

Standard Equipment

A/C System
Independent Heater
Rear View Camera

Performance

MAX. SPEED

90 km/h

MAX. GRADEABILITY

`60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

800 mm

GROUND CLEARANCE

360 mm

RANGE

800 km

Environmental Conditions

MID COLD (CO)

-32 °C

BASIC HOT (A2)

+49 °C

Engine

BRAND

Cummins

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

10,8 lt

MAX. POWER

410 Hp (306 kW) @ 1800 d/d

MAX. TORQUE

2000 Nm @ 1200 d/d

Brakes

TYPE

Disc Type
Double Circuit Full Air
Service Brake
Air Operated Spring Loaded Handbrake
Jacobs Brake
ABS

Transmission

BRAND

Allison 4000 Series

TYPE

Fully Automatic, Torque Converter

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Two Speed

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Driveline

AXLES BRAND

AxleTech 4000 Series

TYPE

Rigid, 6x6

Suspension

FRONT

Parabolic Leaf Springs
Hydraulic Telescopic Shock Absorber
Anti Roll Bar

REAR

Parabolic Leaf Springs
Hydraulic Telescopic Shock Absorber
Anti Roll Bar

Electrical

VOLTAGE

24 V

Standard Equipment

A/C System
Independent Heater
Rear View Camera

Performance

MAX. SPEED

90 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

800 mm

GROUND CLEARANCE

360 mm

RANGE

800 km

Environmental Conditions

BASIC HOT (A2)

+49 °C

MID COLD (CO)

-32 °C

Engine

BRAND

Cummins

TYPE

Turbo, Intercooler, Diesel

Brakes

TYPE

Full Air Dry Type Service Brake System
Air Actuated Spring
Parking Brake
Engine Brake, EBS
Electro-hydraulic Transmission
Integrated Retarder

Protection

Ballistic Protection
STANAG 4569

Transmission

BRAND

Allison

TYPE

Fully Automatic, Torque Convertor

Transfer Case

2 Speed

Tyres & Rims

SIZE / NUMBER

14.00 R20 & 10 x 20"

Driveline and Suspension

AXLES

Rigid, All Wheel Drive

TYPE

8x8

FRONT SUSPENSION

Parabolic Leaf Spring
Telescobic Hydraulic Shock Absorbers
Anti-Roll Bar

REAR SUSPENSION

Tandem Parabolic Leaf Spring
Telescobic Hydraulic Shock Absorbers
Anti-Roll Bar

Electrical

VOLTAGE

24 V

BATTERIES

4 x 12 V, 120 Ah

Standard Equipment

A/C System
Independent Heater
2x35 Ton Winch
Vision System
5th Wheel

Performance

MAX. SPEED

80 km/h

MAX. GRADEABILITY

60% (@KerbW)
30% (@GCW)

MAX. SIDE SLOPE

30%

FORDING DEPTH

750 mm

GROUND CLEARANCE

350 mm

RANGE

800 km

Dimension

MAX. LENGTH

9450 mm

MAX. LENGTH

3750 mm

MAX. WIDTH (without mirrors)

2960 mm

MAX. WIDTH (with mirrors)

3250 mm

PERSONNEL

4

Weights

GROSS COMBINATED WEIGHT (GCW)

127000 kg

Environmental Conditions

MID COLD (CO)

-32 °C

BASIC HOT (A2)

+49 °C

Engine

BRAND

Cummins ISX

TYPE

Turbo, Intercooler, Diesel

Brakes

TYPE

Drum Type
Full Air Dry Type Service Brake System
Parking Brake
Engine Brake
EBS

Transmission

BRAND

Allison

TYPE

Fully Automatic, Torque Converter

NUMBER OF GEARS

7 Forward, 1 Reverse

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Driveline and Suspension

TYPE

Rigid, 8x8

FRONT SUSPENSION

Parabolic Leaf Spring
Telescopic Hydraullic Shock Absorbers,
Anti-Roll Bar

REAR SUSPENSION

Tandem Suspension
Inverted Parabolic Leaf Spring
Telescopic Hydraullic Shock Absorbers,
Anti-Roll Bar

Electrical

VOLTAGE

24 V

BATTERIES

4 x 12 V, 120 Ah

Standard Equipment

A/C System
Independent Cabin Heater
2x35 Ton Winch

Performance

MAX. SPEED

80 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

750 mm

GROUND CLEARANCE

300 mm

RANGE

800 km

Dimension

PERSONNEL

4

Weights

GROSS COMBINATED WEIGHT (GCW)

125000 kg

Environmental Conditions

BASIC HOT (A2)

+49 °C

MID COLD (CO)

-32 °C

Engine

BRAND

Cummins

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

Brakes

TYPE

Drum type, EBS
Full Air Dry Type Dual Circuit Service Brake
Parking Brake
Transmission Integrated Retarder

Protection

STANAG 4569

Transmission

BRAND

Allison

TYPE

Fully Automatic, Torque Convertor

Transfer Case

2 Speed

Tyres & Rims

SIZE / NUMBER

16.00 R20 & 10 x 20"

Driveline and Suspension

AXLES

Rigid

TYPE

8x8

FRONT SUSPENSION

Parabolic Leaf Spring
Telescopic Hydraulic Shock Absorbers

REAR SUSPENSION

Tandem Parabolic Leaf Spring
Telescopic Hydraulic Shock Absorbers

Electrical

VOLTAGE

24 V

BATTERIES

4 x 12 V, 120 Ah

Standard Equipment

Independent Heater
Air Conditioner / Heating System
Vision System
Self Recovery (Front) Winch (15 Ton)
Main (Rear) Winch (40 Ton)
Boom Winch (25 Ton @ 7 m)
Towing System (Rear fork) (13 Ton)

Performance

MAX. SPEED

80 km/h

MAX. GRADEABILITY

60% (@KerbW)

MAX. SIDE SLOPE

30%

FORDING DEPTH

1000 mm

GROUND CLEARANCE

380 mm

RANGE

550 km

Dimension

PERSONNEL

4

Weights

GROSS COMBINATED WEIGHT (GCW)

49000 kg
