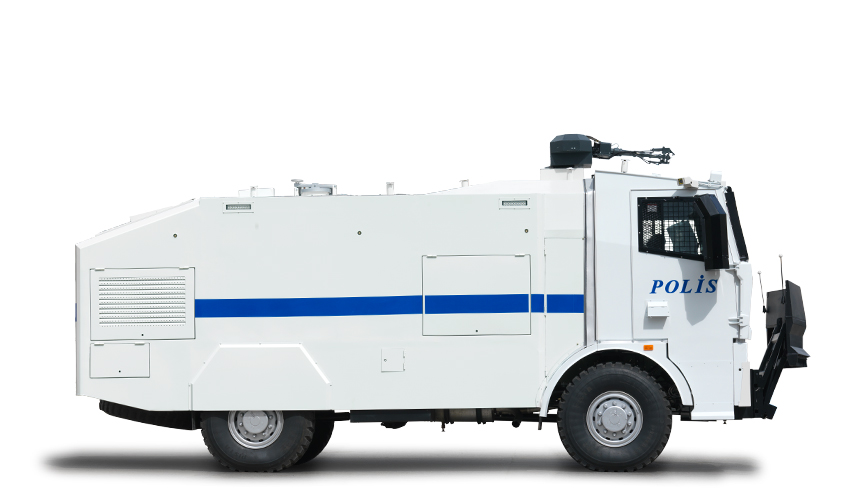

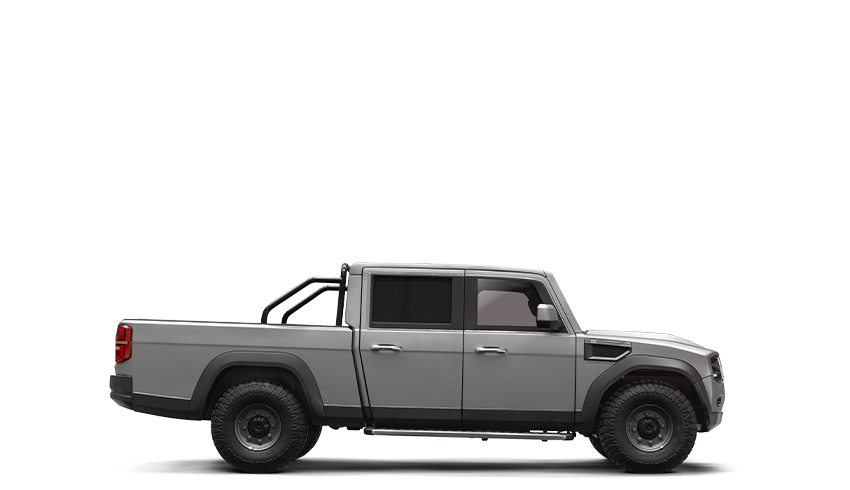

TULGA 4X4 SUV TULGA 4X4 PICK-UP 750-Z 4X2 RIOT CONTROL VEHICLE 4X4

Environmental Conditions

MID COLD (CO)

-32 °C

BASIC HOT (A2)

+49 °C

Engine

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

4

DISPLACEMENT

4,5 lt

MAX. POWER

250 PS @ 2500 rpm

MAX. TORQUE

800 Nm @ 1500-1800 rpm

Brakes

TYPE

Disc Type, ABS

SERVICE BRAKE

Double Circuit Air Reinforced Hydr.

PARKING BRAKE

Air Controlled Mechanical Spring

Protection

Ballistic Protection
Base Protection

Transmission

BRAND

Allison 1000 SP

TYPE

Automatic, Torque Converter

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

BASE (Two Speed)

Tyres & Rims

SIZE / NUMBER

37 x 12,5 R 16,5 & 9,75 16,5"

Driveline And Suspension

AXLES BRAND

BASE

TYPE

4X4 Independent Suspension

DIFFERANTIAL LOCK

Front - Rear

FRONT SUSPENSION

Independent Double Swing
Coil Spring
Hydraulic Absorber

REAR SUSPENSION

Independent Double Swing
Coil Spring
Hydraulic Absorber

Hull

Primer

Electrical

VOLTAGE

24 V

BATTERIES

2 x 100 Ah

ALTERNATOR

180 A

Equipment

A/C System
Independent PreHeater
Runflat
Adaptive Cruise Control System
Blind Spot Warning System (Mirror)
Front and Rear Parking Sensor
Rearview Camera (Rearview mirror)
360 AVM systems
Radio
Night Vision System
Steering System Height and Depth Adjustable
Multimedia Systems 6.2” with Nagivation
USB Connection
Seat Belt Warning System
Digital Video Recorder
Fire Resistant Outer Paint
Self-Recovery Winch
Siren and Announcement System
Emergency Ascent
Firing Port (3 pcs)
Gun Rack
Map Reading Lamp
Blackout Light Switch
Fire Suppression System
Engine Compartment
Crew Compartment
Collision Warning System
Heated Seat
Hill Hold System
Electronic Transmission Control Panel

Performance

MAX. SPEED

130 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

875 mm

GROUND CLEARANCE

300 mm

RANGE

600 km

Dimensions

LENGHT (without Winch)

4875 mm

LENGHT (with Winch)

5175 mm

HEIGHT

2090 mm

WIDTH (without Mirrors)

2050 mm

WIDTH (with Mirrors)

2600 mm

ANGLE OF DEPARTURE

31°

NUMBER OF SEATS

5

Weights

KERB WEIGHT

7450 kg

PAYLOAD

750 kg

GROSS VEHICLE WEIGHT

8200 kg

Performance

MAX. SPEED

130 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

875 mm

GROUND CLEARANCE

300 mm

RANGE

400 km

Environmental Conditions

BASIC HOT (A2)

+50 °C

MID COLD (CO)

-32 °C

Engine

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

4

DISPLACEMENT

4,5 lt

MAX. POWER

250 PS @ 2500 rpm

MAX. TORQUE

800 Nm @ 1500-1800 rpm

Protection

BR7 or BR6, Balistic Protection
Base Protection 200 gr C4

Transmission

BRAND

Allison 100 SP

TYPE

Automatic, Torque Converter

NUMBER OF GEARS

6 Forward, 1 Rear

Transmission Box

Driveline and Suspension

AXLES BRAND

BASE

DIFFERANTIAL LOCK

Available (Front-Rear)

Tyres & Rims

Tyres & Rims

37 x 12,5 R 16,5 & 9,75 16,5"

Suspension

FRONT

Independent Suspension, Independent Double Swing, Helival Springs, Hydraulic Shock Absorbers

REAR

Independent Double Swing, Helival Springs, Hydraulic Shock Absorbers

Brakes

TYPE

Disc Type, ABS
Dual Circuit Air Over Hydraulic
Air Operated Mechanical Brake

Electrical

VOLTAGE

24 V

BATTERIES

2 x 100 Ah

ALTERNATÖR

180 A

Equipment

A/C System, Preheater, Run-Flat Tire, Cruise Control, Tire Pressure Monitoring System, Blind Spot Detection System, Radio, Intercom System (One or Two Way), Night Vision System, Adjustable Steering Wheel (Tilt/Telescopic), Heated Driver and Front Passenger Seat, 6.2" Multimedia System

Emergency Exit (Roof), Firing Port on Rear Windows, Manuel Dimming Control, Electronic Rear Window Tinting System

Optional Equipment

Weights

KERB WEIGHT

6500 kg

PAYLOAD

1000 kg

GROSS VEHICLE WEIGHT

7500 kg

Dimensions

LENGHT

5985 mm

HEIGHT (With RCWS)

2055 mm

WIDTH

2050 mm

ANGLE OF APPROACH

36°

ANGLE OF DEPARTURE

22°

NUMBER OF SEATS

5

Environmental Conditions

MID COLD (CO)

-25°C

BASIC HOT (A2)

+ 45°C

Engine

BRAND

Cummins ISB4.5

TYPE

Turbo Intercooler, Diesel

NUMBER OF CYLINDERS

4

DISPLACEMENT

4,5 lt

MAX. POWER

152 kW (207 PS) @ 2300 rpm

MAX. TORQUE

760 Nm @ 1400 - 1800 rpm

Brakes

TYPE

Fully Air Dry Type Service Brake System
Air Operated Spring Parking Brake
Retarder
ABS / ASR

Protection

EN1522 / EN1063
Ballistic Protection

Transmission

BRAND

Allison

TYPE

Fully Automatic, Torque Converter

NUMBER OF GEARS

6 Forward, 1 Reverse

Tyres & Rims

SIZE / NUMBER

285/70R 19,5 & 7,5 x 19,5”

Driveline and Suspension

TYPE

Rigid, 4x2

FRONT SUSPENSION

Parabolic Leaf Spring
Telescopic, Hydraulic Shock Absorbers
Anti-Roll Bar

REAR SUSPENSION

Parabolic Leaf Spring
Telescopic, Hydraulic Shock Absorbers
Anti-Roll Bar

Electrical

VOLTAGE

24 V

BATTERIES

2 x 12 V

Standard Equipment

A/C System
Independent Cabin Heater
Runflat
Vision System

Performance

MAX. SPEED

90 km/h

GRADEABILITY

30%

RANGE

400 km

Dimensions

OVERALL LENGHT

7450 mm

OVERALL HEIGHT

3445 mm

OVERALL WIDTH

2500 mm

NUMBER OF SEATS

24 + 1

Weights

GROSS VEHICLE WEIGHT

14500 kg

Environmental Conditions

MID COLD (CO)

- 32°C

BASIC HOT (A2)

+ 49°C

Engine

BRAND

Cummins ISLe3 340 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

8,9 lt

MAX. POWER

340 PS (254 kW) @ 2100 rpm

MAX. TORQUE

1425 Nm @ 1200 rpm

Brakes

TYPE

Drum Type
Fully Air Dry Type Service Brake System, Jacobs Brake, ABS
Air Actuated Spring Parking Brake

Protection

EN 1522 / 1063
Ballistic Protection

Transmission

BRAND

Allison 3000 Series

TYPE

Fully Automatic

NUMBER OF GEARS

6 Forward, 1 Reverse

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Driveline and Suspension

AXLES TYPE

Rigid, 4x4

FRONT SUSPENSION

Parabolic Leaf Spring
Anti-Roll Bar

REAR SUSPENSION

Parabolic Leaf Spring
Anti-Roll Bar

Electrical

VOLTAGE

24 V

Standard Equipment

A/C System
Independent Cabin Heater

Performance

MAX. SPEED

90 km/h

GRADEABILITY

40%

MAX. SIDE SLOPE

20%

GROUND CLEARANCE

330 mm

RANGE

750 km

Dimensions

OVERALL LENGHT

7265 mm

OVERALL HEIGHT

3360 mm

OVERALL WIDTH

2600 mm

NUMBER OF SEATS

3

Weights

CAPACITY

5000 lt

GROSS VEHICLE WEIGHT

21000 kg
