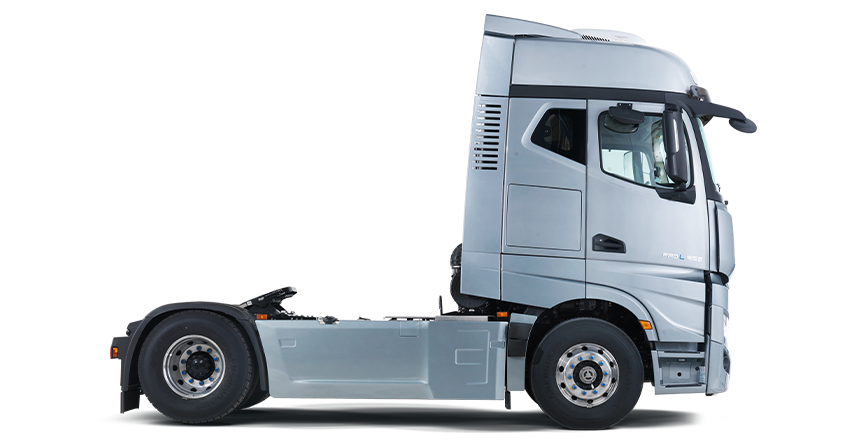

PRO L 1856 PRO L 1852

Cabin

TYPE

High Roof, Double Bed

CHASSIS USAGE TYPE

Tractor

Capacity

PASSENGER CAPACITY

1 Driver + 1 Passenger

NUMBER OF BEDS

2

Engine

BRAND / MODEL

Cummins X13DT EVI E

TYPE

Turbo Intercooler Diesel

NUMBER AND LAOUT OF CYLINDERS

6, in-line

DISPLACEMENT

12.9 L

POWER

560 PS (412 kW) @ 1800 rpm

TORQUE

2500 Nm @ 1100 rpm

Fuel System

FUEL TANK

400 Liters (Right Side) +
800 Liters (Left Side) / Aluminum

ADBLUE TANK

80 L / Left Side

Clutch

TYPE

Diaphragm Spring Single Disc

DIAMETER

430 mm (17 ")

Gear Box

BRAND / MODEL

ZF 12 TX 2621 TD (Automated + Intarder)

NUMBER OF GEARS

12 Forward, 2 Reverse

GEAR RATIOS

16.69 - 1 (Reverse: 15.54 - 2.64)

Axles

FRONT AXLE / Load Capacity

"I" Section Steel -7500 kg

REAR AXLE / Load Capacity

4 Air Bellows, ECAS -13000 kg

Differential

GEAR RATIO

2,533:1 [S] (3,08:1 [O])

Chassis

TYPE

'C'' Section, Monocoque High Strength
Steel, 8mm

Suspension

FRONT AXLE

Parabolic Springs, Telescopic Shock Absorbers

REAR AXLE

4 Air Bellows, ECAS, Telescopic Shock Absorbers

ANTI-ROLL BAR

Front and Rear Drive Axle

Tyres/Wheels

SIZE / QUANTITY (Standard)

315/70 R22.5, 6+1
(5th Wheel Height: 1200mm) [O])

SIZE / QUANTITY (Optional)

315/80 R22.5, 6+1
(5th Wheel Height: 1200mm [S] / 1250mm [O])

RIMS

9 x 22.5, Steel Wheel, 10 Wheel Nut [S]
Aluminum, 10 Wheel Nut [O] "

Electrical

HARDWARE

24 V

BATTERY

2 x 12 V / 220 Ah

ALTERNATOR

28 V / 110 A

STARTER MOTOR

24 V

Performance

CLIMBING ABILITY AT MAXIMUM LOADED WEIGHT

30%

MAXIMUM VEHICLE SPEED

90 km/s (Limited)

Brakes

BRAKE SYSTEM TYPE

Air-Operated, Ø430x45 Disc Brakes
ABS, EBS, ASR, ESC, AEBS, HSA, EPB

AUXILIARY BRAKE SYSTEM

Engine Brake, 359 kW
Intarder 600 kW

Steering

BRAND / MODEL

BOSCH

TYPE

Electro-Hydraulic Power Steering System (EHPS)

Other Informations

APPROACH / DEPARTURE / RAMP ANGLES

315/70/R22,5 : 16° / 23° / 16° [S]

TURNING RADIUS

< 7000 mm

EXHAUST-CATALYST SYSTEM PLACEMENT

Right Side

5TH WHEEL HEIGHT

1200mm [S] / 1250mm [O]

Standard Equipment

Digital Climate Control
10.4" Multimedia Touchscreen
Android Auto & Apple CarPlay Compatible
12V Power Outlet (Driver Area)
2 × USB Ports + 12V Socket (Passenger Area)
1 × USB Port (Multimedia)
2 × USB Ports (Sleeper Area)
Cruise Control
Steering Wheel-Mounted Controls
Heated and Electrically Adjustable Side Mirrors
Height- and Reach-Adjustable Steering Wheel
Electrically Operated Sunroof
4-Point Fully Air-Suspended Cab Suspension
Electronic Braking System (EBS)
Electronic Stability Control (ESC)
Advanced Emergency Braking System (AEBS)
Immobilizer
Remote-Controlled Central Locking with Single Key
Differential Lock
Digital Tachograph
Air-Suspended Driver Seat with Adjustable Damper Stiffness
Fixed Passenger Seat
Adjustable Right Armrest (Driver Seat)
Electrically Operated Windows
Driver Seatbelt Sensor
Driver and Passenger Sun Visors
Dry-Type Cab Heater
Hill-Holder Assist
Brake Pad Wear Indicator
Integrated Seat Headrests
Catwalk
Roof & Side Spoilers
Lane Departure Warning System (LDWS)
Axle Load Indicator
Upper Dashboard with Digital Display
Spare Wheel
Electric Low-Beam Headlight Height Adjustment
Trailer Side Lamps
Under-Hood Lamp
Under-Cab Lamp
Front Fog Lamps
Electric Cab Lift
Fleet Management System (FMS) Socket and Module
40-Litre Refrigerator
Tyre Inflation Valve
Tyre Pressure Monitoring System (TPMS)
800 L + 400 L Aluminium Fuel Tanks
Blind Spot Information System (BSIS)
Moving Off Information System (MOIS)
Reverse Detection and Information System
Intelligent Speed Assistance (ISA)
Emergency Stop Signal (ESS)
Alcohol Interlock System Interface
Driver Drowsiness Detection System
Cybersecurity Management System
Software Update Management System
Follow-Me-Home Headlight Function
Passenger Seatbelt Warning Sensor
ADR Package (Dangerous Goods Transport Compliance)
Intarder (600 kW Retarder Braking Power)
Speed Limiter
Adjustable Left Armrest (Passenger Seat)
Transmission-Mounted PTO (Power Take-Off)

Optional Equipment

800-Litre Aluminium Fuel Tank
Electrically Operated Roof Hatch
Optional 5th Wheel Height: 1,250 mm
Smart Tachograph
Fleet Management System (FMS)
Fabric & Leather Driver and Passenger Seats

Dimensions

Wheelbase

3700 mm

Overall Lenght

5990 mm

Overall Width

2550 mm

Overall Height

3760 mm (3920 mm w/Park AC)

Cabin Depth

2345 mm (2535 SP)

Usable Wheelbase

3410 mm (3220 SP)

Rear Overhang

815 / 300 mm

Front Track Width

2060 mm

Rear Track Width

1850 mm

Front Chassis Height

1010 mm

Internal Width

2370 mm

Front Overhang

1475 mm

Weight

1. AXLE

7500 kg - 7500 kg

2. AXLE

13000 kg - 11500 kg

TOTAL

18000 kg - 18000 kg

Kerb Weight

1. AXLE

5370 kg

2. AXLE

2195 kg

TOTAL

7565 kg

Cabin

TYPE

High Roof, Double Bed

CHASSIS USAGE TYPE

Tractor

Capacity

PASSENGER CAPACITY

1 Driver + 1 Passenger

NUMBER OF BEDS

2

Engine

BRAND / MODEL

Cummins X13DT EVI E

TYPE

Turbo Intercooler Diesel

NUMBER AND LAOUT OF CYLINDERS

6, in-line

DISPLACEMENT

12.9 L

POWER

520 PS (382 kW) @ 1800 rpm

TORQUE

2500 Nm @ 1100 rpm

Fuel System

FUEL TANK

400 Liters (Right Side) +
800 Liters (Left Side) / Aluminum

ADBLUE TANK

80 L / Left Side

Clutch

TYPE

Diaphragm Spring Single Disc

DIAMETER

430 mm (17 ")

Gear Box

BRAND / MODEL

ZF 12 TX 2621 TD (Automated + Intarder)

NUMBER OF GEARS

12 Forward, 2 Reverse

GEAR RATIOS

16.69 - 1 (Reverse: 15.54 - 2.64)

Axles

FRONT AXLE / Load Capacity

"I" Section Steel -7500 kg

REAR AXLE / Load Capacity

4 Air Bellows, ECAS -13000 kg

Differential

GEAR RATIO

2,533:1 [S] (3,08:1 [O])

Chassis

TYPE

'C'' Section, Monocoque High Strength
Steel, 8mm

Suspension

FRONT AXLE

Parabolic Springs, Telescopic Shock Absorbers

REAR AXLE

4 Air Bellows, ECAS, Telescopic Shock Absorbers

ANTI-ROLL BAR

Front and Rear Drive Axle

Tyres/Wheels

SIZE / QUANTITY (Standard)

315/70 R22.5, 6+1
(5th Wheel Height: 1200mm) [O])

SIZE / QUANTITY (Optional)

315/80 R22.5, 6+1
(5th Wheel Height: 1200mm [S] / 1250mm [O])

RIMS

9 x 22.5, Steel Wheel, 10 Wheel Nut [S]
Aluminum, 10 Wheel Nut [O] "

Electrical

HARDWARE

24 V

BATTERY

2 x 12 V / 220 Ah

ALTERNATOR

28 V / 110 A

STARTER MOTOR

24 V

Performance

CLIMBING ABILITY AT MAXIMUM LOADED WEIGHT

30%

MAXIMUM VEHICLE SPEED

90 km/s (Limited)

Brakes

BRAKE SYSTEM TYPE

Air-Operated, Ø430x45 Disc Brakes
ABS, EBS, ASR, ESC, AEBS, HSA, EPB

AUXILIARY BRAKE SYSTEM

Engine Brake, 359 kW
Intarder 600 kW

Steering

BRAND / MODEL

BOSCH

TYPE

Electro-Hydraulic Power Steering System (EHPS)

Other Informations

APPROACH / DEPARTURE / RAMP ANGLES

315/70/R22,5 : 16° / 23° / 16° [S]

TURNING RADIUS

< 7000 mm

EXHAUST-CATALYST SYSTEM PLACEMENT

Right Side

5TH WHEEL HEIGHT

1200mm [S] / 1250mm [O]

Standard Equipment

Digital Climate Control
10.4" Multimedia Touchscreen
Android Auto & Apple CarPlay Compatible
12V Power Outlet (Driver Area)
2 × USB Ports + 12V Socket (Passenger Area)
1 × USB Port (Multimedia)
2 × USB Ports (Sleeper Area)
Cruise Control
Steering Wheel-Mounted Controls
Heated and Electrically Adjustable Side Mirrors
Height- and Reach-Adjustable Steering Wheel
Electrically Operated Sunroof
4-Point Fully Air-Suspended Cab Suspension
Electronic Braking System (EBS)
Electronic Stability Control (ESC)
Advanced Emergency Braking System (AEBS)
Immobilizer
Remote-Controlled Central Locking with Single Key
Differential Lock
Digital Tachograph
Air-Suspended Driver Seat with Adjustable Damper Stiffness
Fixed Passenger Seat
Adjustable Right Armrest (Driver Seat)
Electrically Operated Windows
Driver Seatbelt Sensor
Driver and Passenger Sun Visors
Dry-Type Cab Heater
Hill-Holder Assist
Brake Pad Wear Indicator
Integrated Seat Headrests
Catwalk
Roof & Side Spoilers
Lane Departure Warning System (LDWS)
Axle Load Indicator
Upper Dashboard with Digital Display
Spare Wheel
Electric Low-Beam Headlight Height Adjustment
Trailer Side Lamps
Under-Hood Lamp
Under-Cab Lamp
Front Fog Lamps
Electric Cab Lift
Fleet Management System (FMS) Socket and Module
40-Litre Refrigerator
Tyre Inflation Valve
Tyre Pressure Monitoring System (TPMS)
800 L + 400 L Aluminium Fuel Tanks
Blind Spot Information System (BSIS)
Moving Off Information System (MOIS)
Reverse Detection and Information System
Intelligent Speed Assistance (ISA)
Emergency Stop Signal (ESS)
Alcohol Interlock System Interface
Driver Drowsiness Detection System
Cybersecurity Management System
Software Update Management System
Follow-Me-Home Headlight Function
Passenger Seatbelt Warning Sensor
ADR Package (Dangerous Goods Transport Compliance)
Intarder (600 kW Retarder Braking Power)
Speed Limiter
Adjustable Left Armrest (Passenger Seat)
Transmission-Mounted PTO (Power Take-Off)

Optional Equipment

800-Litre Aluminium Fuel Tank
Electrically Operated Roof Hatch
Optional 5th Wheel Height: 1,250 mm
Smart Tachograph
Fleet Management System (FMS)
Fabric & Leather Driver and Passenger Seats

Dimensions

Wheelbase

3700 mm

Overall Lenght

5990 mm

Overall Width

2550 mm

Overall Height

3760 mm (3920 mm w/Park AC)

Cabin Depth

2345 mm (2535 SP)

Usable Wheelbase

3410 mm (3220 SP)

Rear Overhang

815 / 300 mm

Front Track Width

2060 mm

Rear Track Width

1850 mm

Front Chassis Height

1010 mm

Internal Width

2370 mm

Front Overhang

1475 mm

Weight

1. AXLE

7500 kg - 7500 kg

2. AXLE

13000 kg - 11500 kg

TOTAL

18000 kg - 18000 kg

Kerb Weight

1. AXLE

5370 kg

2. AXLE

2195 kg

TOTAL

7565 kg
